2ND GEN SIDE-GRIP PILER
SIDE-GRIP PILER FEATURES
EXCLUSIVE "CENTRIC HIT" TECHNOLOGY
Unique to CRAMEC: The only one to employ the "Centric Hit" central strike technology, making it 20% stronger than any other side-grip vibra in the same excavator.
OPTIMIZED DEAD WEIGHT
Lighter and More Dynamic: Features a dead weight of 800kg, significantly lighter compared to others, enhancing the machine's performance with hydraulic motors that accelerate this weight up and down 50 times per second.
CENTRALIZED VIBRATORY FORCE
Focused and Efficient: The vibratory force is centered in the middle of the pile, reducing ground vibration by 30-40% and ensuring minimal disturbances in sensitive areas.
LOW NOISE LEVELS
Quiet Operation: Works under 90db, providing a quieter work environment, thanks to the central strike technology that doesn't shake the pile.
PRECISE CONTROL SYSTEM

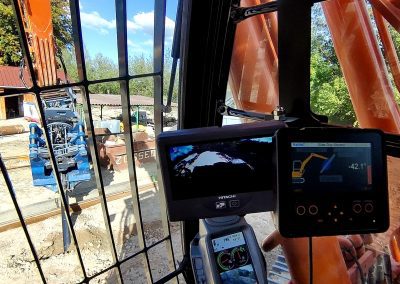

Quick Mastery: Allows direct control in X, Y, Z and R directions, with users able to master driving their first pile in all directions with just 4 hours of training.
UP/DOWN HAMMER FEATURE
Continuity in Work: Offers a quick switch to the UP/DOWN hammer in just 2 minutes to continue work, representing the most economical solution for driving piles into silt where even 600-800 hp vibras fail.
Click the play button to start the video
HOW 2ND GENERATION SIDE-GRIP PILER WORKS

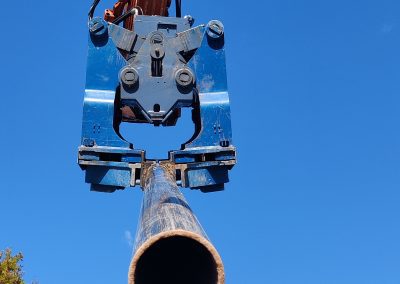

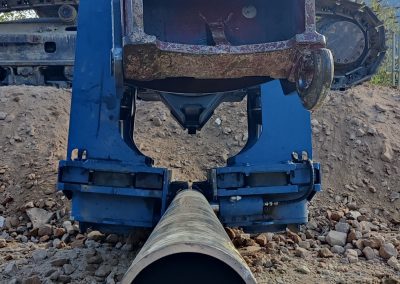

CRAMEC 50/30/3X ”centric hit” 2nd generation side-grip sheet-piler represents a leap in piling technology, incorporating innovative features that set it apart in the market. Leveraging “centric hit” technology, it achieves higher vibration force with over 50% less dynamic weight, enhancing efficiency and power. Its design allows for rapid changing of pipe clamps within 15 minutes, a stark contrast to the industry norm, facilitating a smoother workflow.

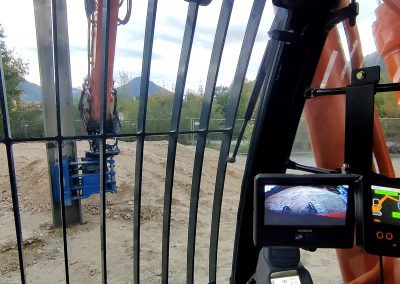

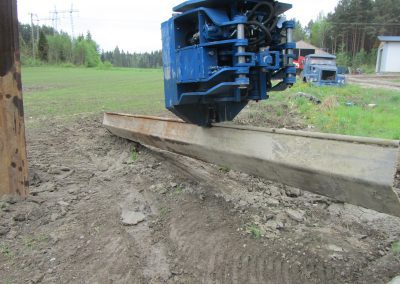

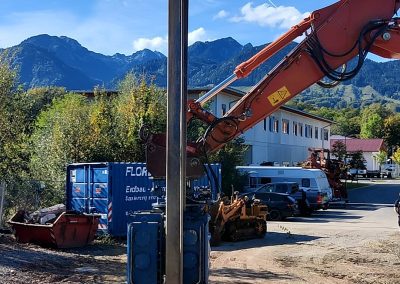

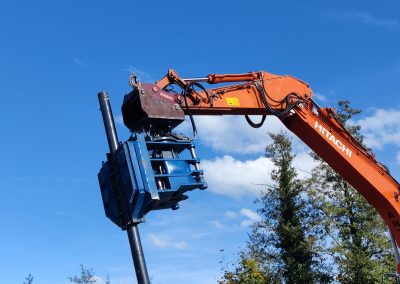

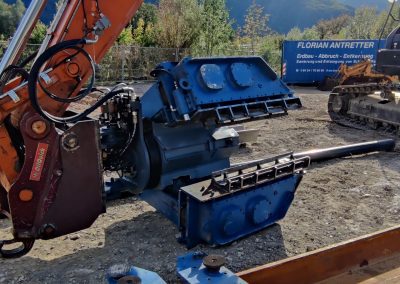

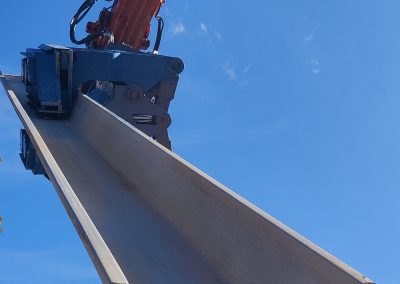

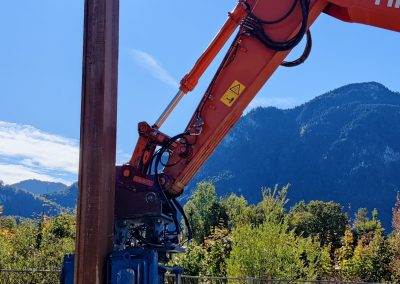

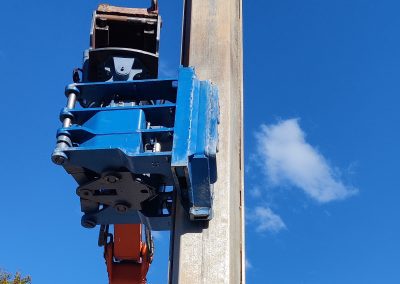

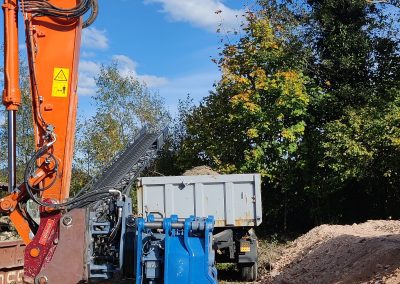

USER CASES
TECHNICAL DATA OF RAMEC 50/30/X3 "CENTRIC HIT"
| Model In horsepower 1) | SGV 70 | SGV 100 | SGV 150 | SGV 190 |
|---|---|---|---|---|
| Weight 2) | 2400 kg 4800 lb |
2500 kg 5000 lb |
2600 kg 3200 lb |
2650 kg 3300 lb |
| Hydraulic power | 67 hp | 104 hp | 150 hp | 190 hp |
| Excavator class (ton) 3) | 16-20 | 20-25 | 30-36 | 40-43 |
| Engine power | 112 hp | 160 hp | 221 hp | 277 hp |
| Oil-flow | 120 l/min 30 gal/min |
180 l/min 45 gal/min |
240 l/min 60 gal/min |
300 l/min 75 gal/min |
| Working pressure | 280 bar 4200 psi |
280 bar 4200 psi |
280 bar 4200 psi |
280 bar 4200 psi |
| Pressure setting | 300 bar 4400 psi |
300 bar 4400 psi |
300 bar 4400 psi |
300 bar 4400 psi |
| Pile length | 16 m 48 ft |
16 m 48 ft |
16 m 48 ft |
16 m 48 ft |
| Pile weight | 4000 kg 8000 lb |
4000 kg 8000 lb |
4000 kg 8000 lb |
4000 kg 8000 lb |
| Pipe diameter | 800 mm 32 inch |
800 mm 32 inch |
800 mm 32 inch |
800 mm 32 inch |
| Double "Z" and "U" pile | Yes | Yes | Yes | Yes |
| Wide profile | Yes | Yes | Yes | Yes |
| Plastic piles | Yes | Yes | Yes | Yes |
| Standard CRAMEC 4) | Trench | Trench | Trench | Trench |
1) The "intake" hydraulic power is the only correct way to compare different kind of vibrators. CRAMEC "centric hit" is the ONLY vibrator also increasing vibrator's efficiency. CRAMEC needs less power of same results.
2) Without adapter
3) See the engine power
4) Std CRAMEC's trench team needs 1 exc., 1 quick hitch, 1 bucket, RaMeC, RaMeC drum compactor and 2 men
DOWNLOAD TECHNICAL LEAFLEFT
RAMEC 50/30/X3
50% MORE PERFORMANCE
30% LOWER MAINTENANCE AND REPAIR COSTS

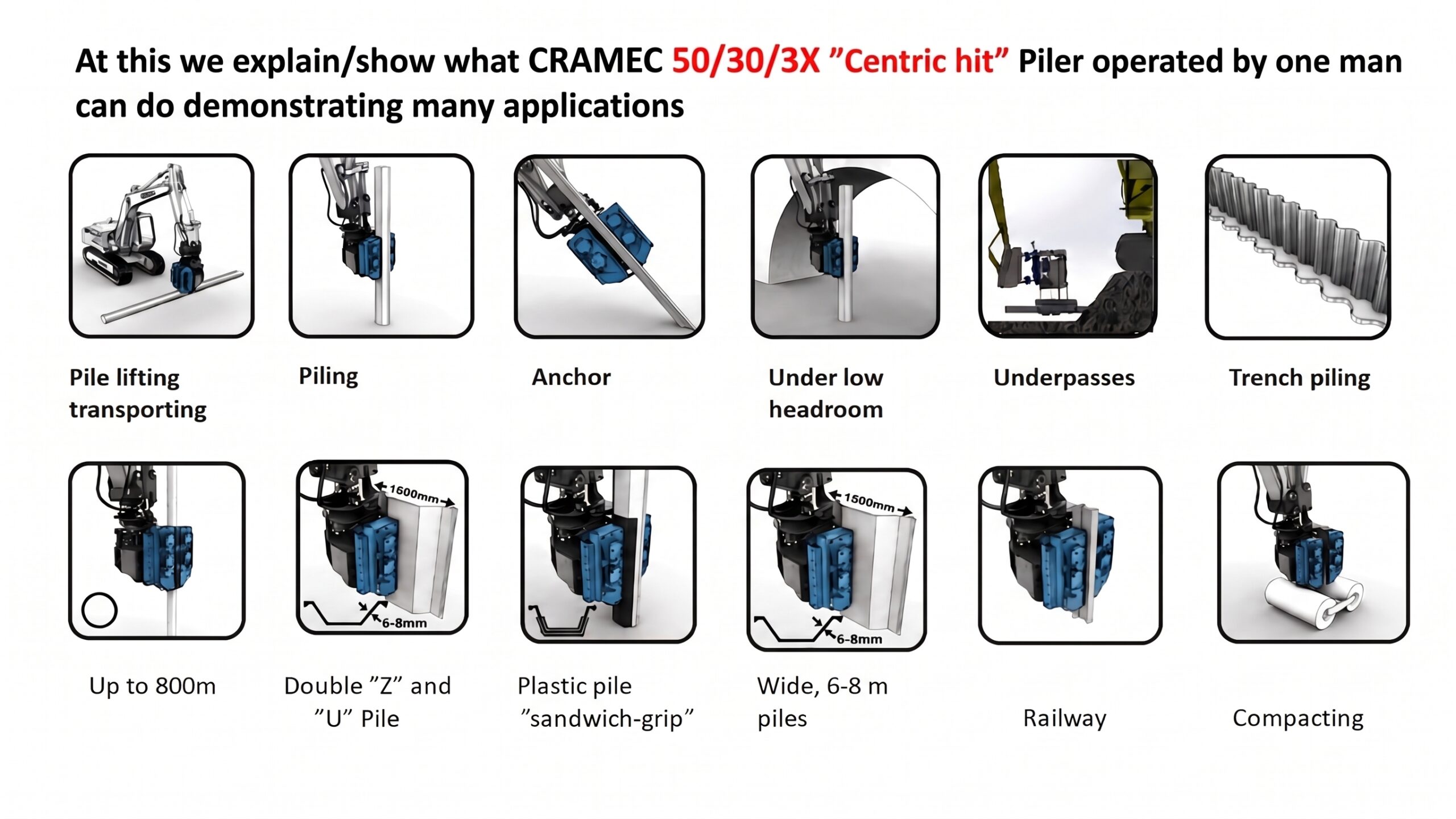

3X MORE VERSATILITY APPLICATION
At CRAMEC, we guarantee that our machinery is 100% more powerful than the industry-leading competitor, elevating your project’s efficiency and potency to unprecedented levels. Dive deeper to understand how we are revolutionizing industry standards.
Choose CRAMEC and benefit from at least 30% lower maintenance and repair costs compared to other players in the market. We are committed to providing a solution that is not only superior but also more economical, underscoring the financial advantages of partnering with CRAMEC.
CRAMEC promises a minimum of 3 x increase in the versatility of applications compared to our nearest competitor. Witness the expanded range of possibilities with our solutions
RAMEC 50/30/X3
50% MORE PERFORMANCE
At CRAMEC, we guarantee that our machinery is 50% more powerful than the industry-leading competitor, elevating your project’s efficiency and potency to unprecedented levels. Dive deeper to understand how we are revolutionizing industry standards.
30% LOWER MAINTENANCE AND REPAIR COSTS
Choose CRAMEC and benefit from at least 30% lower maintenance and repair costs compared to other players in the market. We are committed to providing a solution that is not only superior but also more economical, underscoring the financial advantages of partnering with RaMeC.
3X MORE VERSATILITY APPLICATION
CRAMEC promises a minimum of 3 x increase in the versatility of applications compared to our nearest competitor. Witness the expanded range of possibilities with our solutions
IN-DEPTH SHEET PILING JOB REPORT
Explore how CRAMEC Side-Grip performs against traditional End-Grip vibrators in a large-scale project spanning 800,000 meters (2.4 million feet) of sheet piling. This report offers a meticulous evaluation of various setups. Gain insights into key performance metrics such as vibration power, measured performance, and manpower requirements.
